Container side loader (also known as container side lift or side loading semi-trailer) is a special logistics equipment integrating container transportation and independent side loading & unloading. Equipped with a pair of separate hydraulic lifting booms on both sides, it requires no auxiliary external machinery such as port gantry cranes, reach stackers or forklifts. A single unit can complete the full workflow of lifting standard 20GP/40GP containers from ground level, loading, unloading and short-distance transfer. It serves as core equipment for scenarios without dedicated handling yards, narrow working spaces and door-to-door intermodal transportation.
大图

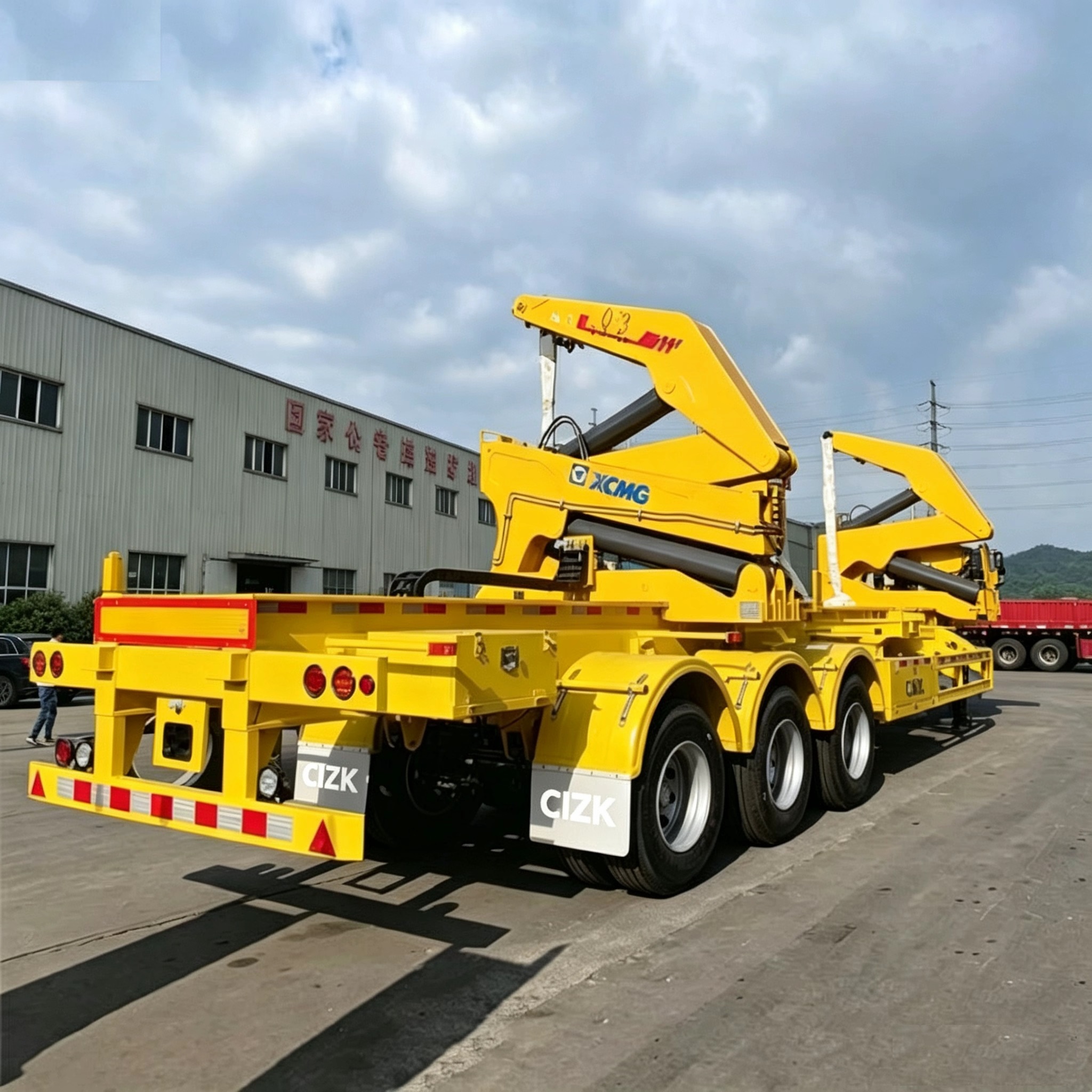

This CIZK 37-ton container side loader works efficiently all day long to complete container loading, unloading and transportation, saving plenty of time and improving overall productivity. It serves as a flexible handling solution that lifts containers safely and precisely and allows the trailer to get close to target working positions conveniently. The trailer is equipped with top-tier global brand accessories including renowned WABCO brake valves and JOST landing gears specially for container chassis. It adopts the well-known German NBB remote controller for effortless operation. Built with a tough, high-load-bearing chassis, it can steadily carry heavier goods. Supported by wireless remote lifting technology, the whole container loading procedure can be finished in merely 10 minutes.
细节图
| Name | Container Side Loader Trailer |
| Dimension | 14100*2500*4200mm (Customizable) |
| Max.stabilizer outreach | 3200mm |
| Max.working range | 4000mm |
| Overall height | 2500mm |
| Overall length | 1020mm |
| Max.pressure of hydraulic system | 28Mpa |
| shipping containers | 20FT/40FT |
| Payload | ≤35T |
| Tire | 12R22.5, 315/80R22.5, Triangle, Double coin, Linglong. |
| Axles | 3 axles,13T/16T/20T Fuwa, BPW |
| King Pin | 3.5 inch JOST Brand |
| Brake System | KEMI,WABCO with Four double Two single air chamber |
| Landing Gears | Standard 28 Ton, Fuwa, JOST |
| Suspension | Mechanical suspension, Air suspension |
| Braking System | Dual brake chambers, WABCO brake valve; ABS optional |
| Twist locks | 4 / 8 / 12 sets |
