Side Tipper Trailer

2+4 Axle Superlink Side Tipper Trailer Tipper Trailers Structure The CIZK Superlink Side Tipper Trailer is engineered for high-volume logistics. Combining a double-trailer setup with rigorous manufacturing standards, it greatly boosts your operational capacity. Its main beam is constructed from premium Q345A manganese steel, while the cargo body is built with ultra-high-strength wear-resistant steel. Every unit is elaborately engineered to withstand harsh heavy-load conditions and maintain structural integrity over millions of driving kilometers. One tractor unit can haul two large cargo compartments simultaneously, and the Superlink configuration delivers superior economic benefits. This double-trailer design significantly cuts the cost per ton by reducing fuel consumption, tire wear and labor expenses per trip. Detail display              Product Details Name 2+4 Axle Superlink Side Tipper Trailer Dimension 6803*2500*2700mm /  12500*2500*3000 (side wall customized) Payload ＞120T Tire 12R22.5, 315/80R22.5, Triangle, Double coin, Linglong. Axles 2+4 axles,13T/16T/20T   Fuwa, BPW King Pin 2 inch or 3.5 inch JOST Brand Brake System KEMI,WABCO with Four double Two single air chamber Landing Gears Standard 28 Ton, Fuwa, JOST Hydraulic System Lifting cylinder 5x130 bore, a shift cylinder Suspension Mechanical suspension, Air suspension Floor 8-12mm smooth plate apolegamy toolbox   Why Choose CIZK?  Designed for African heavy-duty transportation conditions  Reinforced chassis for rough roads and overloaded operations  High-quality components from globally recognized suppliers  Factory-direct price with OEM & ODM customization support  Fast delivery and worldwide spare parts support  Trusted by customers in Africa, the Middle East, and Southeast Asia CIZK — Built for Africa. Built to Last.

2+3 Axle Superlink Side Tipper Trailer     Superlink Side Tipper Trailer The CIZK Superlink Side Tipper Trailer is engineered for high-volume logistics. Combining a double-trailer setup with rigorous manufacturing standards, it greatly boosts your operational capacity. Its main beam is constructed from premium Q345A manganese steel, while the cargo body is built with ultra-high-strength wear-resistant steel. Every unit is elaborately engineered to withstand harsh heavy-load conditions and maintain structural integrity over millions of driving kilometers. One tractor unit can haul two large cargo compartments simultaneously, and the Superlink configuration delivers superior economic benefits. This double-trailer design significantly cuts the cost per ton by reducing fuel consumption, tire wear and labor expenses per trip.   Detail display Product Details Name 2+3 Axle Superlink Side Tipper Trailer Dimension 6803*2500*2700mm / 11800*2500*2700(side wall customized) Payload 80T-100T Tire 12R22.5, 315/80R22.5, Triangle, Double coin, Linglong. Axles 2+3 axles,13T/16T/20T   Fuwa, BPW King Pin 2 inch or 3.5 inch JOST Brand Brake System KEMI,WABCO with Four double Two single air chamber Landing Gears Standard 30 Ton, Fuwa, JOST Hydraulic System Lifting cylinder 5x130 bore, a shift cylinder Suspension Mechanical suspension, Air suspension Floor 8-12mm smooth plate apolegamy toolbox   Why Choose CIZK?  Designed for African heavy-duty transportation conditions  Reinforced chassis for rough roads and overloaded operations  High-quality components from globally recognized suppliers  Factory-direct price with OEM & ODM customization support  Fast delivery and worldwide spare parts support  Trusted by customers in Africa, the Middle East, and Southeast Asia CIZK — Built for Africa. Built to Last.

5 Axle Side Tipper Trailer Side Tipper Trailer Manufacturer The main beam adopts high-strength Q345A manganese steel, delivering outstanding performance against torsion and crack damage from bumpy driving environments. High-strength wear-resistant steel is applied to cargo body side panels and floor, perfectly resisting strong ore impact and long-term abrasion from sand and gravel. The subframe is reinforced with densely arranged longitudinal stiffeners matched with full-through cross beams, with beam spacing controlled within 450 mm. This structural design reliably absorbs frequent continuous impacts when traveling on rugged, potholed dirt roads. Fitted with four heavy-duty axles and mechanical leaf spring suspension, the trailer structure is sturdy and long-lasting, greatly cutting daily maintenance expenses. The entire trailer receives full-process anti-corrosion surface treatment, which effectively prevents rust damage from coastal saline environments and corrosive mine dust. Detail display                          Product Details Name 5 Axle Side Tipper Trailer Dimension 13,000 × 2,550 × 4,000mm(side wall customized) Payload ≥100T Tire 12R22.5, 315/80R22.5, Triangle, Double coin, Linglong. Axles 5Axle,16T/20T   Fuwa, BPW King Pin 3.5 inch JOST Brand Brake System KEMI,WABCO with Four double Two single air chamber Landing Gears Standard 30 Ton, Fuwa, JOST Hydraulic System Lifting cylinder 5x130 bore, a shift cylinder Suspension Mechanical suspension, Air suspension Floor 8-12mm smooth plate apolegamy toolbox   Why Choose CIZK?  Designed for African heavy-duty transportation conditions  Reinforced chassis for rough roads and overloaded operations  High-quality components from globally recognized suppliers  Factory-direct price with OEM & ODM customization support  Fast delivery and worldwide spare parts support  Trusted by customers in Africa, the Middle East, and Southeast Asia CIZK — Built for Africa. Built to Last.

4 Axle Side Tipper Trailer Side Tipper Trailer Manufacturer The main beam adopts high-strength Q345A manganese steel, delivering outstanding performance against torsion and crack damage from bumpy driving environments. High-strength wear-resistant steel is applied to cargo body side panels and floor, perfectly resisting strong ore impact and long-term abrasion from sand and gravel. The subframe is reinforced with densely arranged longitudinal stiffeners matched with full-through cross beams, with beam spacing controlled within 450 mm. This structural design reliably absorbs frequent continuous impacts when traveling on rugged, potholed dirt roads. Fitted with four heavy-duty axles and mechanical leaf spring suspension, the trailer structure is sturdy and long-lasting, greatly cutting daily maintenance expenses. The entire trailer receives full-process anti-corrosion surface treatment, which effectively prevents rust damage from coastal saline environments and corrosive mine dust.   Detail display                       Product Details Name 4 Axle Side Tipper Trailer Dimension 12500*2550*2700mm(side wall customized) Payload 60T-80T Tire 12R22.5, 315/80R22.5, 12.00R20 Triangle, Double coin, Linglong. Axles 16T/20T   Fuwa, BPW King Pin 3.5 inch JOST Brand Brake System KEMI,WABCO with Four double Two single air chamber Landing Gears Standard 28 Ton, Fuwa, JOST Suspension Mechanical suspension, Air suspension Floor 5-12mm smooth plate apolegamy toolbox   Why Choose CIZK?  Designed for African heavy-duty transportation conditions  Reinforced chassis for rough roads and overloaded operations  High-quality components from globally recognized suppliers  Factory-direct price with OEM & ODM customization support  Fast delivery and worldwide spare parts support  Trusted by customers in Africa, the Middle East, and Southeast Asia CIZK — Built for Africa. Built to Last.

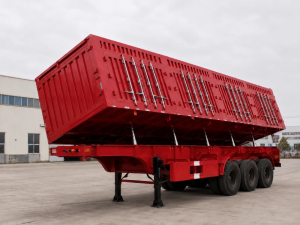

3 Axle Heavy Duty Side Tipper Side Tipper Trailer Manufacturer The frame features a through-type double-layer Q345 manganese steel I-beam main girder, fitted with reinforcing liners on the gooseneck’s lower flange. It boasts excellent bending and torsion resistance, avoiding cracks and deformation under heavy loads, bumpy roads and tipping operations, ideal for rough African terrain. It is equipped with 3 heavy-duty axles and heavy-duty mechanical leaf spring suspension, matched with thickened balance beams and cast steel hangers. Shock-resistant and fatigue-proof, the three axles share loads evenly to cushion vibrations from gravel roads and steep mine slopes. The cargo box is made of high-strength wear-resistant steel plates with cross beam reinforced posts to prevent bulging. Twin-side hydraulic cylinders realize rapid complete unloading without leftover clay or mineral slag. Designed with a wide track and low center of gravity to prevent rollover during driving and unloading. The waterproof, dustproof braking system adapts to dusty and rainy working conditions in Africa.   Detail display                           Product Details Name 3 Axle Heavy Duty Side Tipper Dimension 12500*2550*2700mm(side wall customized) Payload 50T-60T Tire 12R22.5, 315/80R22.5, Triangle, Double coin, Linglong. Axles 16T/20T   Fuwa, BPW King Pin 3.5 inch JOST Brand Brake System KEMI,WABCO with Four double Two single air chamber Landing Gears Standard 28 Ton, Fuwa, JOST Suspension Mechanical suspension, Air suspension Floor 5-12mm smooth plate apolegamy toolbox   Why Choose CIZK?  Designed for African heavy-duty transportation conditions  Reinforced chassis for rough roads and overloaded operations  High-quality components from globally recognized suppliers  Factory-direct price with OEM & ODM customization support  Fast delivery and worldwide spare parts support  Trusted by customers in Africa, the Middle East, and Southeast Asia CIZK — Built for Africa. Built to Last.

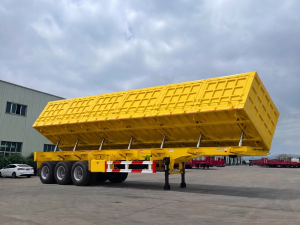

3 Axle Side Dump Trailer Side Tipper Trailer Manufacturer This 3-axle side-tipping semi-trailer Adopt through-type double-layer reinforced I-beam with reinforcing liner on gooseneck lower flange, doubling bending and torsion resistance. It effectively avoids beam deformation and cracks under heavy load, bumpy African roads and tipping unloading, cutting maintenance costs greatly. Equipped with 3 heavy-duty axles and reinforced mechanical leaf spring suspension with thickened balance beam for outstanding anti-fatigue and impact resistance. Perfect for unpaved dirt roads, mine slopes and gravel roads. Unlike single-layer beams prone to fatigue fracture, our reinforced frame minimizes breakdowns and lowers long-term repair expenses.   Detail display                      Product Details Name 3 Axle Side dump semi trailer Dimension 12500*2550*2700mm(side wall customized) Payload 30T-40T Tire 11R22.5, 12R22.5, 315/80R22.5, Triangle, Double coin, Linglong. Axles 13T/16T/20T   Fuwa, BPW King Pin 2 inch or 3.5 inch JOST Brand Brake System KEMI,WABCO with Four double Two single air chamber Landing Gears Standard 28 Ton, Fuwa, JOST Suspension Mechanical suspension, Air suspension Floor 5mm smooth plate apolegamy toolbox   Why Choose CIZK?  Designed for African heavy-duty transportation conditions  Reinforced chassis for rough roads and overloaded operations  High-quality components from globally recognized suppliers  Factory-direct price with OEM & ODM customization support  Fast delivery and worldwide spare parts support  Trusted by customers in Africa, the Middle East, and Southeast Asia CIZK — Built for Africa. Built to Last.
