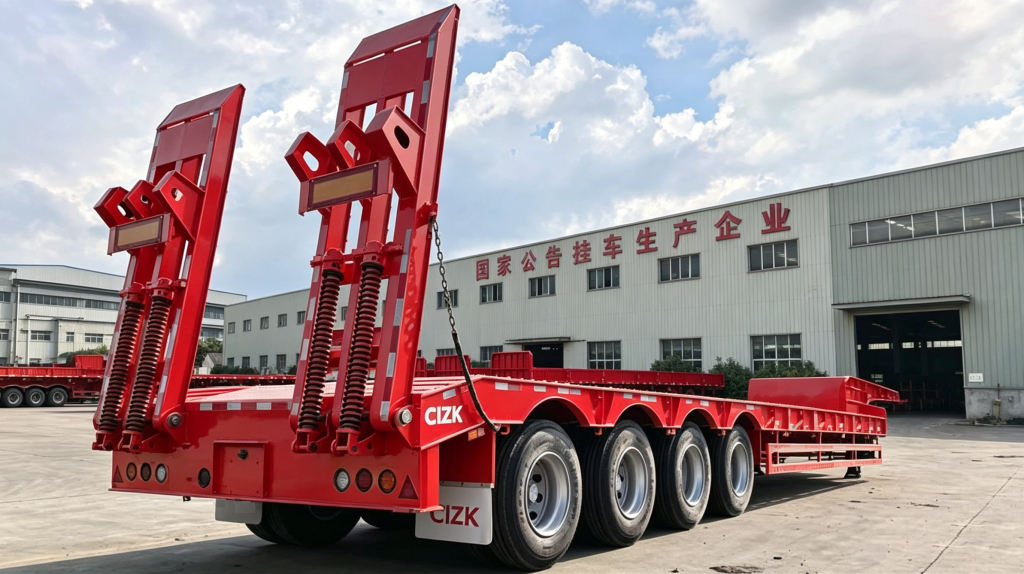

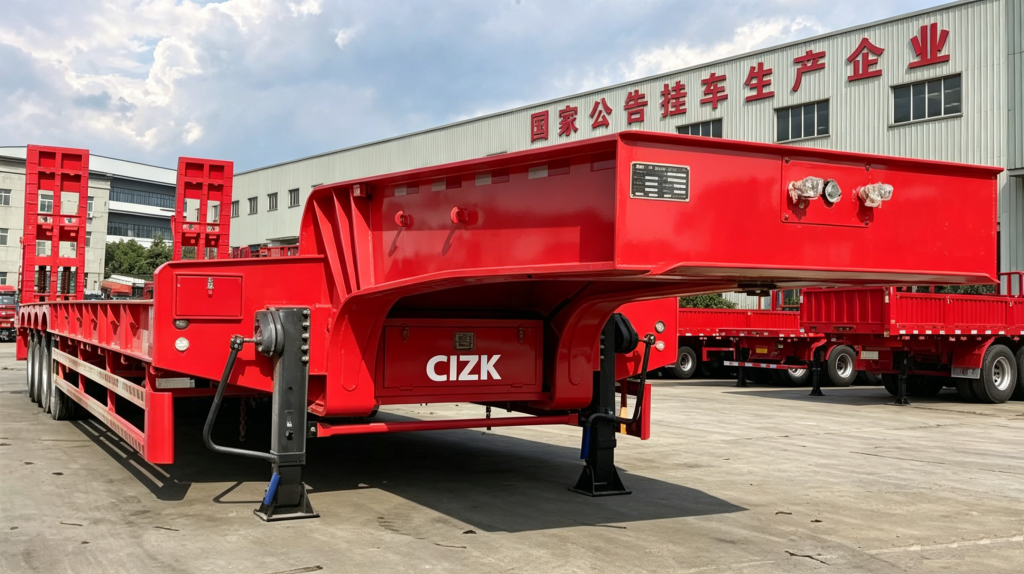

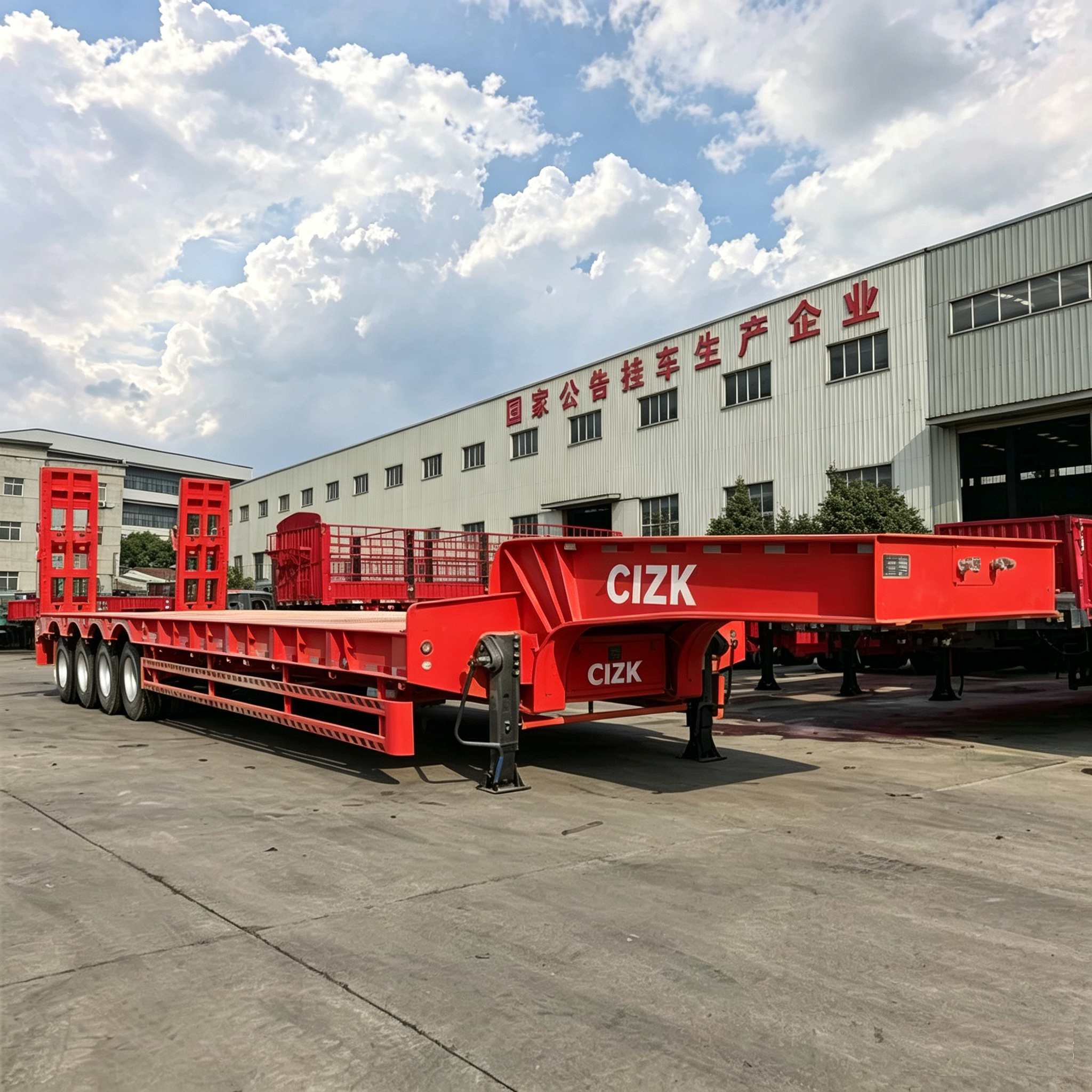

4 Axle Heavy-Duty Low bed semi trailer

Low-bed semi-trailers feature a wide range of cargo transportation applications, suitable for hauling all types of machinery and equipment, oversized cargo, highway construction machinery, large storage tanks, power plant equipment, and various steel products.

Axle configurations：2-axle, 3-axle, 4-axle, 5-axle ,6-axle available
Load capacity options：40T, 60T, 80T, 100T customizable

Heavy-Duty Low Bed Trailer

Heavy Equipment Trailer

Low-bed semi-trailers have three structures: flatbed, concave beam and exposed tire, with straight or gooseneck longitudinal beams. The trapezoidal frame with I-section beams boasts high rigidity and strength.

Its low cargo deck guarantees stable haulage for construction machinery, large equipment and steel.

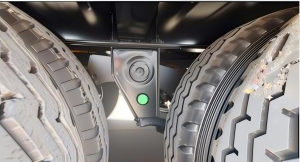

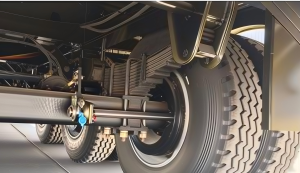

It uses 2/3-axle balanced or rigid suspensions. Balance blocks between front and rear leaf springs equalize spring deflection to balance axle loads.

These trailers efficiently carry machinery, oversized goods, road construction gear, large tanks and power plant equipment. Optimized by CAD software, their load decks can be customized to ship special cargo as required.

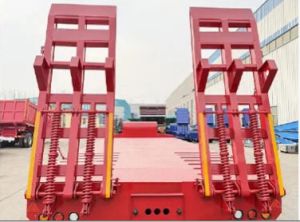

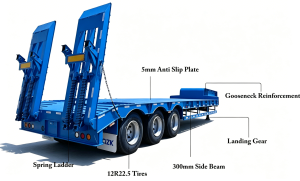

Detail display

细节图

Product Details

Name	4 Axle Heavy-Duty Low bed semi trailer

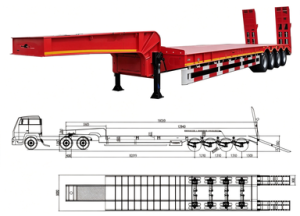

Dimension	1375030001600mm (customized)
Payload	80T-100T
Tire	12R22.5, 315/80R22.5, Triangle, Double coin, Linglong.
Axles	4 axles,16T/20T Fuwa, BPW
King Pin	3.5 inch JOST Brand
Brake System	KEMI,WABCO with Four double Two single air chamber

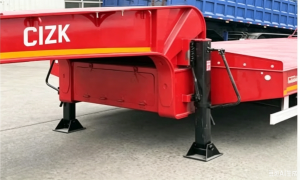

Landing Gears	Standard 30 Ton, Fuwa, JOST
Suspension	Mechanical suspension, Air suspension
Floor	3mm-5mm thick checkered plate
Braking System	Dual brake chambers, WABCO brake valve; ABS optional
